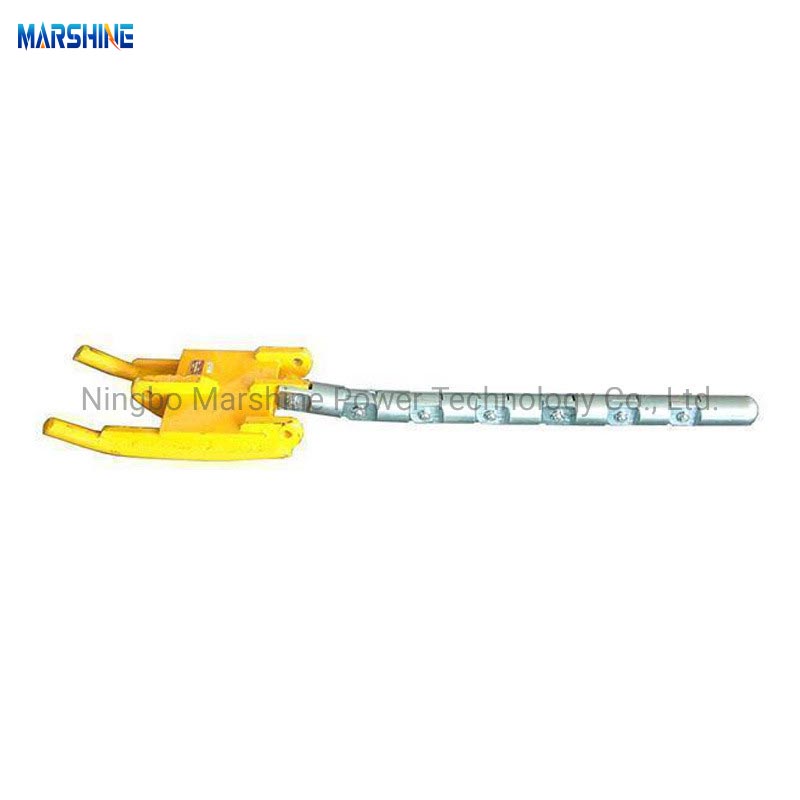

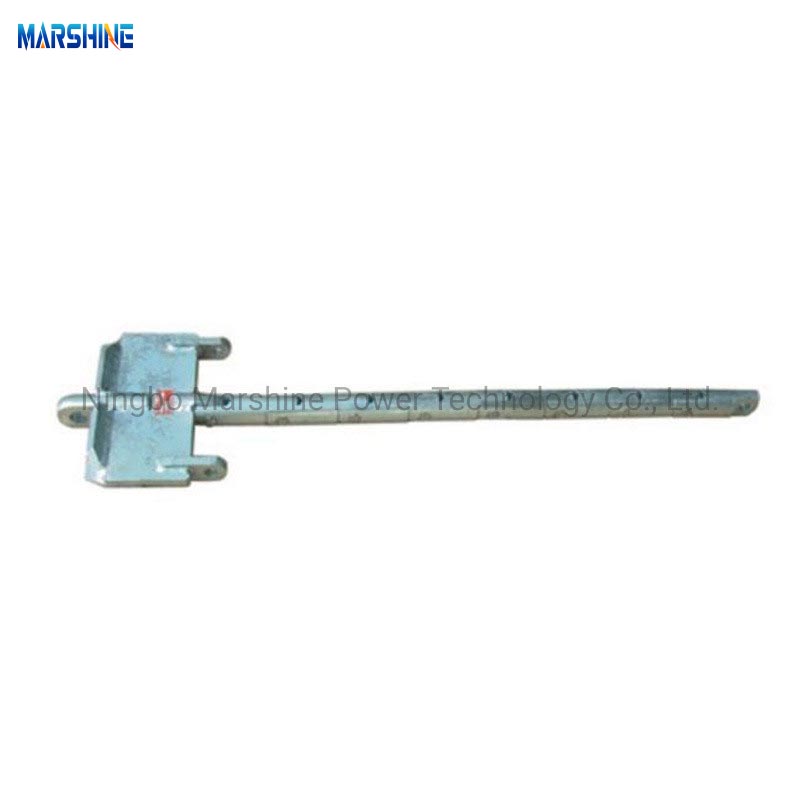

Designed to ensure optimal alignment and stability for high voltage transmission systems, MARSHINE Head Boards for Two Bundle Conductors prevent conductor galloping, collisions and fatigue. Designed for utility professionals and renewable energy projects, these rugged header plates maintain precise spacing between dual-beam conductors, improving grid reliability in extreme weather and high-load conditions. Manufactured with aerospace-grade materials and advanced engineering techniques, they provide unmatched durability and performance for modern energy infrastructure.
Product Parameter
| Item number | Model | Rated load (KN) | Applicable stringing block sheave width(mm) | Weight (kg) | Feature |
| 17220 | SZ2-8 | 80 | 75 | 17 | independent |
| 17221 | SZ2-8A | 100 | 19 | ||
| 17222 | SZ2-8B | 110 | 19.5 | ||
| 17223 | SZ2A-8 | 80 | 100 | 90 | Poising sheave |
| 17223T | SZ2A-8T | 110 | 100 | ||
| 17224 | SZ2B-13 | 130 | 110 | 55 | independent |
| 17225 | SZ2C-13 | 130 | 110 | 50 | |
| 17226 | SZ2B-18 | 180 | 125 | 90 |
Product Feature
Rugged Construction: MARSHINE Head Boards for Two Bundle Conductors is made of high-quality alloy steel or aluminum alloy, it is strong and durable.
Optimized Design: Maintains uniform tension and spacing between the two conductors during pulling.
Multiple Mounting Points: Easily connects tow ropes, swivels, and conductor clamps.
Corrosion-Resistant Surface: Suitable for a variety of environmental conditions, ensuring long-term durability.
Smooth Pulling: Reduces conductor wear and prevents cable twisting or entanglement.
Product Application
Overhead transmission line installation using double beam conductors.
Our MARSHINE Head Boards for Two Bundle Conductors is suitable for high voltage power line construction projects.
Can be used with hydraulic traction machines, tensioners and line pulleys.
Suitable for new transmission line projects and maintenance or upgrades of existing infrastructure.
Product Details
Here are the details about the MARSHINE Head Boards for Two Bundle Conductors, which was a critical component in any high voltage line erection operation involving dual conductors:
Reliable quality: Our MARSHINE is known for producing durable, high-performance stringing tools and accessories.
Field-proven products: Trusted by professionals around the world in real-world construction environments.
Rigorous quality control: Each product is rigorously inspected and meets international standards.
Efficient: Lightweight design enables small construction teams to be quickly deployed even in remote or rugged terrain.
Reliable performance: Trusted in high-voltage transmission projects in more than 50 countries, including coastal grids and mountainous areas.
